The SARANA represents Factor's deliberate expansion of the gravel spectrum. It’s been created for ultra distance racing, events measured in days rather than hours, where riders are entirely self-supported and performance depends as much on efficiency and resilience as on outright speed. Races that stretch across countries, through days and nights, where riders are their own mechanics, navigators, and occasionally, their own worst enemies.

As our interpretation of what a true ultra race bike should be, the SARANA reflects the same instincts that drive every Factor: curiosity, precision, and the belief that speed is something to be felt as much as measured.

*Premium package - without groupset

• Specifications
• Geometry
• Video

• Specs

  Frame	Toray®, Nippon Graphite® Pan-Based Fiber
  Fork	Factor SARANA carbon
  Seatpost	FSA SL-K SB0 Seatpost Compatible with 30.9mm dropper seatpost
  Barstem	Black Inc Integrated Barstem (Reach 75mm, Drop 116mm) Multiple stem lengths and bar widths available
  Headset	1.5″ bearings
  Head Tube Diameter	1.5″ upper and lower
  Saddle Rail Clamps	7x7 and 7x9
  Bottom Bracket	CeramicSpeed T47A WIDE aluminium cups CeramicSpeed bearings available for DUB and 24mm
  Cable Routing	Internal
  Compatible Components	Electronic
  Brake Type	Disc
  Max Rotor Size	160mm front & rear
  Max Chainring	52-tooth
  Front Axle	12 x 100mm thru-axle
  Rear Axle	12 x 142mm thru-axle
  Wheelset	Black Inc 46
  Wheel Size	700c
  Max Tire Clearance	57mm measured

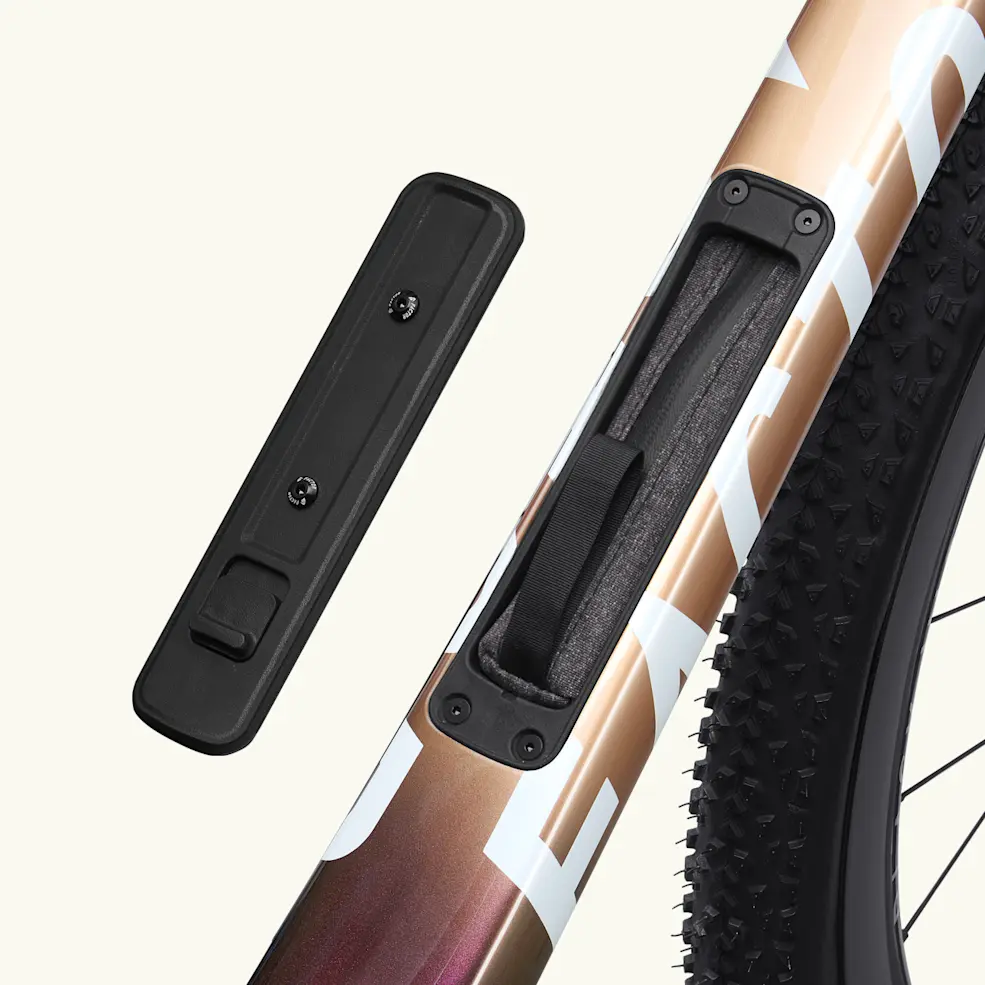

  Included Accessories	Downtube storage bag / Top tube pack / Frame pack
  Manufacturer Warranty	Limited Lifetime Warranty

• Geometry



  Size	49	52	54	56	58
  A Stack	544	558	573	593	613
  B Reach	378	388	398	408	418
  C Head Tube Angle	71.5°	71.5°	71.5°	71.5°	71.5°
  D BB Drop	82	82	80	80	80
  E Trail	65	65	65	65	65
  F Fork Rake / Offset	51	51	51	51	51
  G Chainstay Length	425	425	425	425	425
  H Wheelbase	1003	1018	1032	1051	1067
  I Seat Tube Angle	75.3°	74.5°	74.5°	74°	74°
