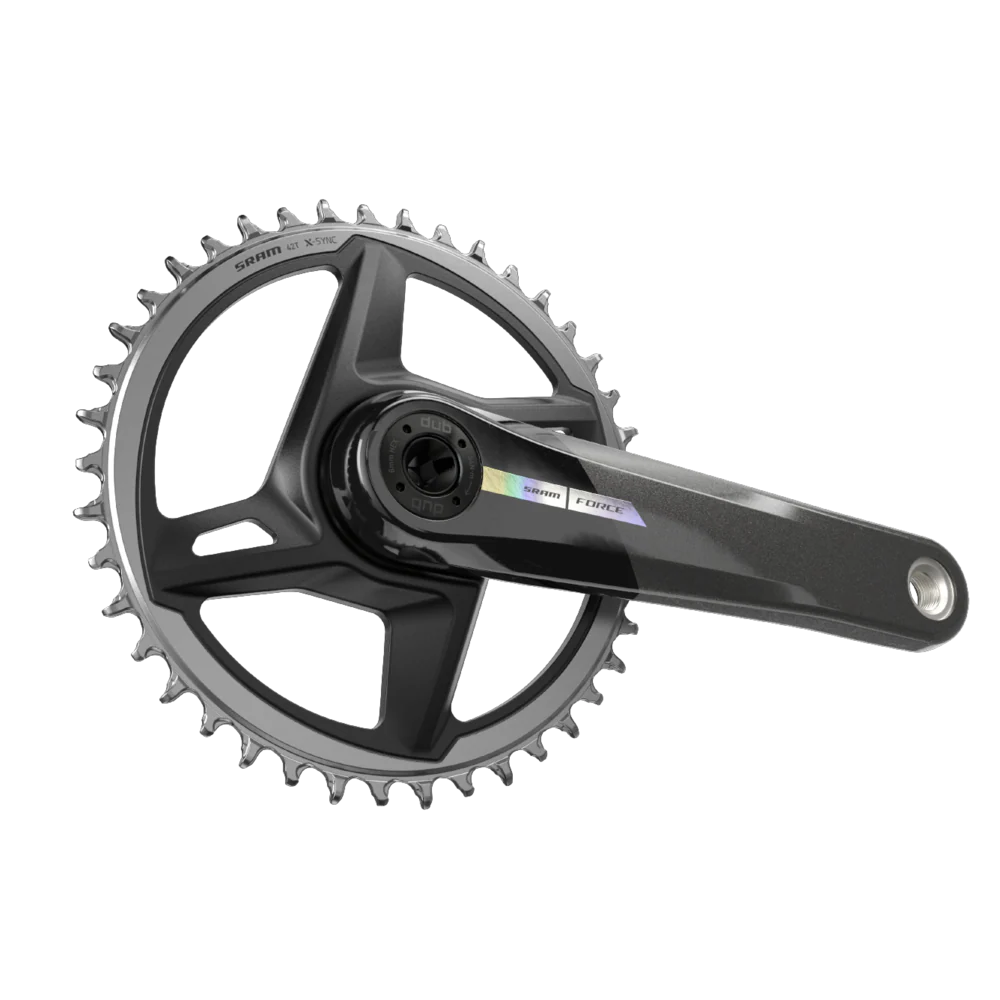

The SRAM Force D2 1x WIDE Crankset 12sp 40T offers a direct mount chainring for lighter and stiffer performance, and a wide chainline to fit larger gravel tires. Its DUB bottom bracket adds durability and simplicity, and is compatible with various rear spacing standards. Upgrade to a power meter for even more advanced features.

Model ID
FC-FRC-1W-D2

• Features
• Technology
• Specifications

• Features

  • Direct mount chainrings are lighter and stiffer than traditional spider-based rings
  • Wide chainline crankset to fit the biggest gravel tires
  • Longer DUB crank spindle accommodates both Road and MTB width frame bottom bracket standards for unmatched cross-compatibility across brands
  • Compatible with 135mm, 142mm and Boost rear spacing
  • SRAM X-SYNC wide-tooth, narrow-tooth chainring technology provides maximum chain control
  • DUB bottom bracket adds durability and simplicity
  • Can be upgraded to a power meter

• Technology

  SRAM X-SYNC - 1x chainrings provide the highest level of performance and durability. The SRAM X-SYNC tall square teeth edges engage the chain earlier than traditional triangle shaped teeth. The sharp and narrow tooth profile, as well as rounded chamfer edges, help manage a deflected chain. To provide the best possible performance in muddy conditions, the X-SYNC chainrings have been designed with mud-clearing recesses for the inner chain links and rollers. Engineered in Germany, X-SYNC rings are an integral part of the SRAM 1x drivetrain. Accept no imitation.

  DUB - The relationship between bottom bracket spindle and bearing is the core of DUB technology. It’s where stiffness meets durability. We took it a step beyond conventional thinking and made everything simpler—better integrating the relationship between chainring, crank, spindle and bottom bracket. It’s this approach to developing a complete system that equals better drivetrain performance.

  X-Range - Road bikes are faster and more capable than ever before, and riders are expanding what’s possible with drop bar bikes. X-Range is gearing for today’s road riding. We completely reimagined road gearing for wider range, more useful and smoother gear progression, as well as smarter shift settings—enabled by AXS. With X-Range, you’re always in the right gear.

• Specifications

  • Speeds: 12, 13
  • BB Compatibility: All SRAM Road WIDE DUB BBs, except Ai
  • Chainring Size: 40T
  • Crank arm length: 165mm, 167.5mm, 170mm, 172.5mm, 175mm
  • Chainline: 47.5mm
  • BB Spindle Interface: DUB
  • Chainring material: Aluminum
  • Bolt Circle Diameter (BCD): Direct Mount (DM)
  • Power meter: n/a
  • Power Meter Type: n/a
  • Chain Technology: Eagle, Road Flattop D1, Road Flattop E1, T-Type
  • Drivetrain Configuration: 1x
  • Technology (FD): n/a
  • Front Tooth Jump: 0
