SPEED + COMFORT

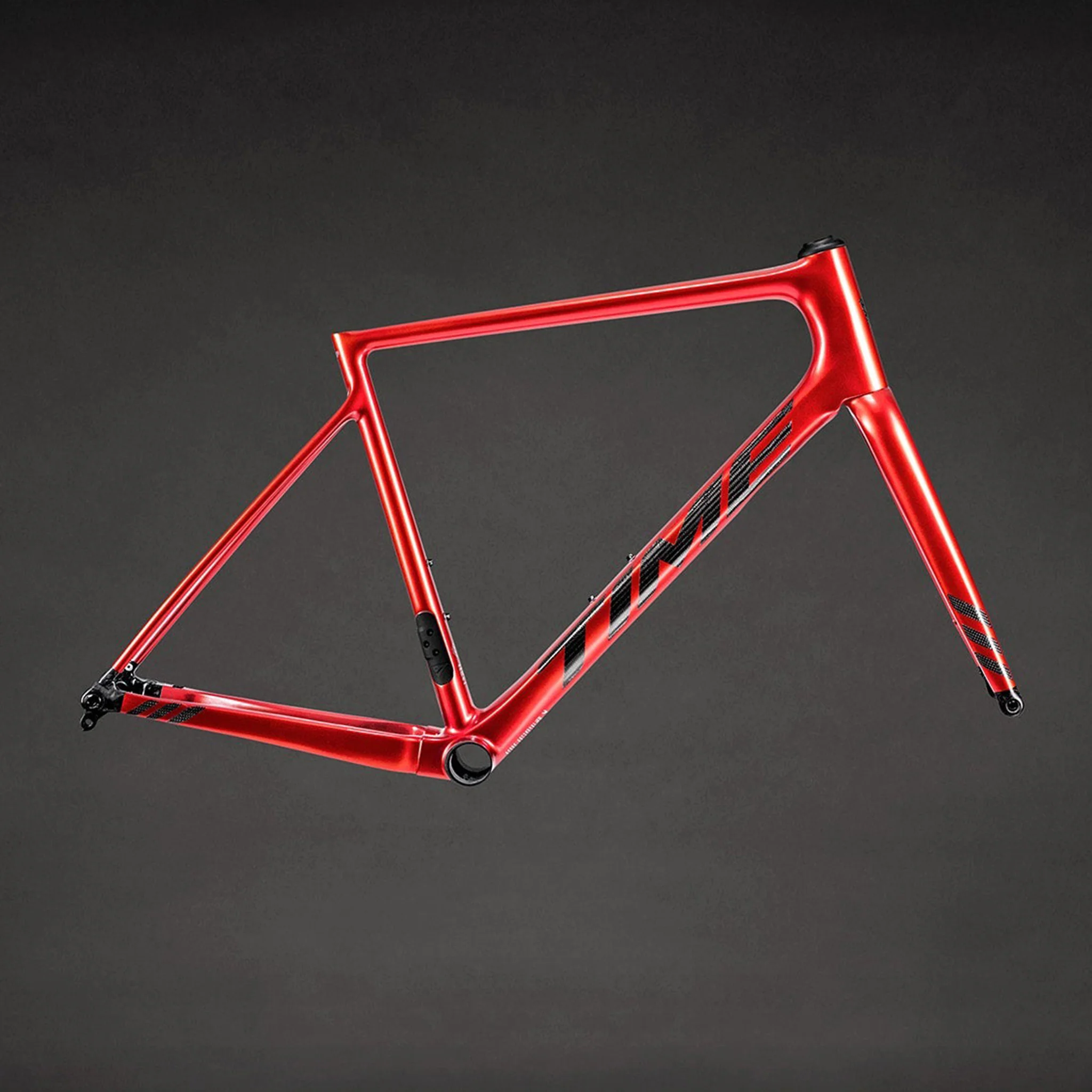

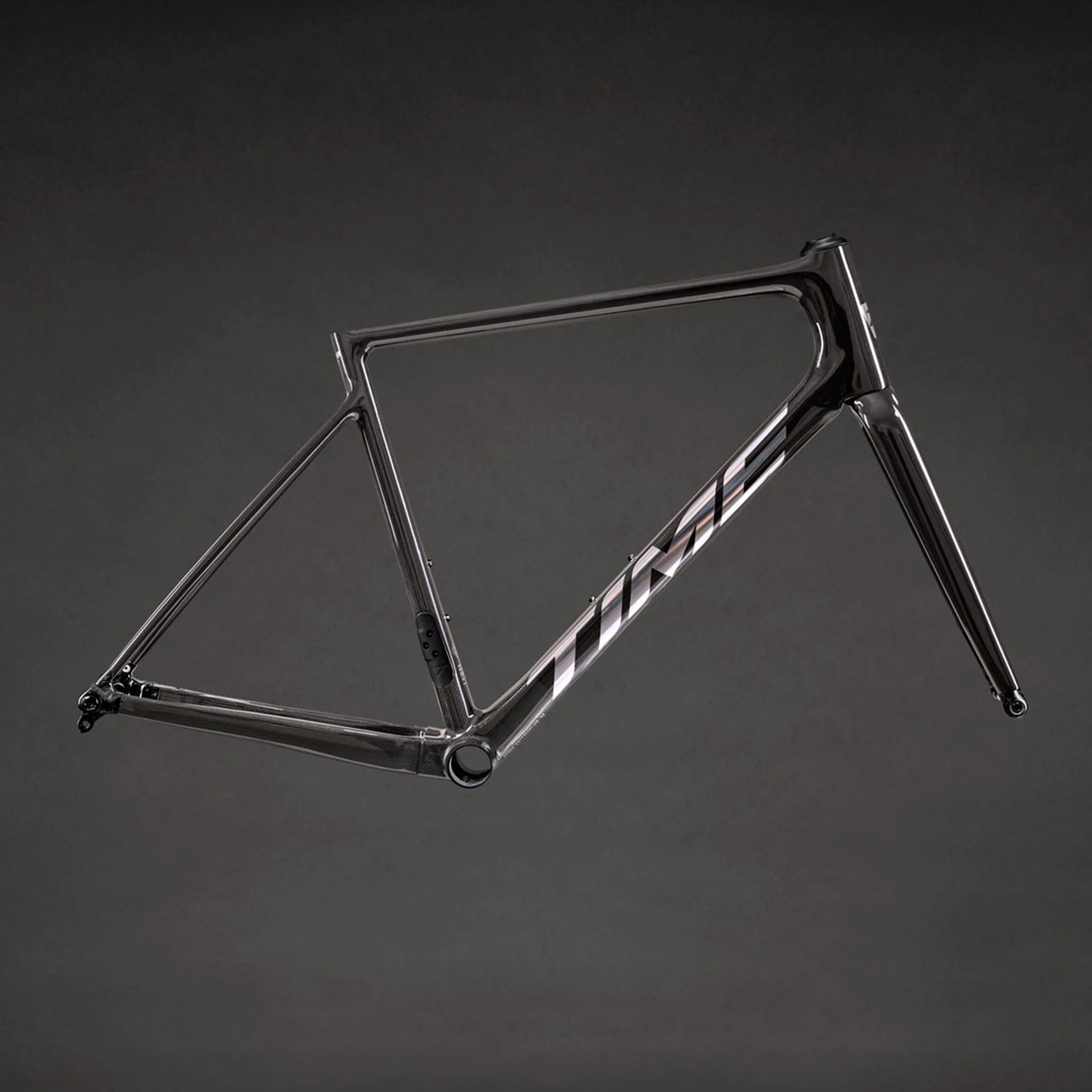

TIME’s all-time best-seller returns, completely redeveloped to meet the demands of the modern performance endurance cyclist. Fluidity represents the definitive expression of this category—fast, precise, responsive, and comfortable over any distance.

Comfort, in this context, is defined by fit. Fluidity’s endurance geometry positions the rider more upright than a pure race bike, allowing for a more open posture, improved breathing, and sustainable efficiency over long distances. This is not a softer ride, but a more relaxed position. Its performance characteristics match those of the Alpe d’Huez, with the key difference being how the rider feels after several hours in the saddle.

TIME well spent. This legendary endurance road bike, born in the heart of Europe, is designed to be ridden wherever the road leads.

What is Dyneema?

Dyneema is a natural fibre that is 15x stronger than steel, while still being light enough to float on water. Since Time weaves their own carbon, they are able to add a layer of Dyneema into their carbon makeup without compromising in weight. This makes for a super strong frame where it matters most, specifically at the intersections of the downtube, toptube, and headtube. Dyneema, in addition to Time's BCS and RTM carbon laying process, makes for the best made bicycle frames in the world. If you want a frame that is perfect every time, it's time you choose Time.

Special orders; Please inquire with us if you are interested in building the Time ADH Disc with any groupset and wheelset.

• Specifications
• Geometry
• Video

• Specifications

  • Frame Material: Dyneema® Enhanced BCS Carbon Fiber
  • Thru Axles: 12x120x1.5mm pitch Front, 12x161x1.0mm pitch Rear
  • Sizes: XS, SM, MD, LG, XL
  • Seatpost Diameter: ø 27.2mm
  • Fork Steerer Tube: Tapered 1-1/8" to 1-1/2" Kevlar Enhanced BCS Carbon Fiber
  • Seatpost Clamp: Integrated Hidden Clamp
  • Headset Bearings: FSA NO.69 SRS 1-1/8" / 1.5", 45° / 45° ACB
  • Shifting: Compatible with all Electronic Shifting Systems
  • Wheel Size: 700c, ETRTO (max)40-622
  • Front Derailleur: 1X and 2X Compatible
  • Maximum Tire Width: 40mm
  • Rear Derailleur: SRAM UDH Hanger
  • Bottom Bracket: PF 386 EVO
  • Brake Type: Front and Rear Flat Mount Disc
  • Disc Hub Standard: 12x100mm (Front), 12x142mm (Rear)
  • Rotor Size: 140/160mm with Adapter
  • Torque Specs
    Thru Axles: 10nm
    Seat Clamp: 4-5nm
    FD cover/plate: 3nm
    Disc caliper mounts: 6-7nm

  What's Included

  • FSA Internal Headset with SMR Top Cover
  • Front and Rear Thru Axles
  • TIME Headset Top Cover for ACR System
  • Front and Rear Derailleur Hangers
  • Alloy Bottle Bolts
  • Integrated Seatpost Clamp

• Geometry




  Fluidity Size		XS	S	M	L	XL
  1	Seat Tube (Actual)	462	488	508	540	559
  2	Top Tube (Virtual)	530	544	559	575	591
  3	Seat Tube Angle	73.7°	73°	73°	73°	73°
  4	Head Tube Angle	70.5°	71.5°	72.5°	72.5°	72.5°
  5	HEAD TUBE	134	150	168	188	208
  6	Fork Offset	53	53	53	53	53
  7	Axle to Crown	368	368	368	368	368
  8	TRAIL	73	66	60	60	60
  9	Front Centre	589	591	598	613	618
  10	Chainstay	425	425	425	425	425
  11	DROP	71	71	71	71	71
  12	Wheelbase	1004	1006	1012	1026	1033
  13	Stack	540	560	580	600	620
  14	Reach	362	368	378	386	391
  15	Standover Height	762	788	812	828	857

  153cm 5'0"

  158cm 5'2"

  162cm 5'4"

  168cm 5'6"

  173cm 5'8"

  178cm 5'10"

  183cm 6'0"

  188cm 6'2"

  196cm 6'4"

  XS

  SM

  MD

  LG

  XL
